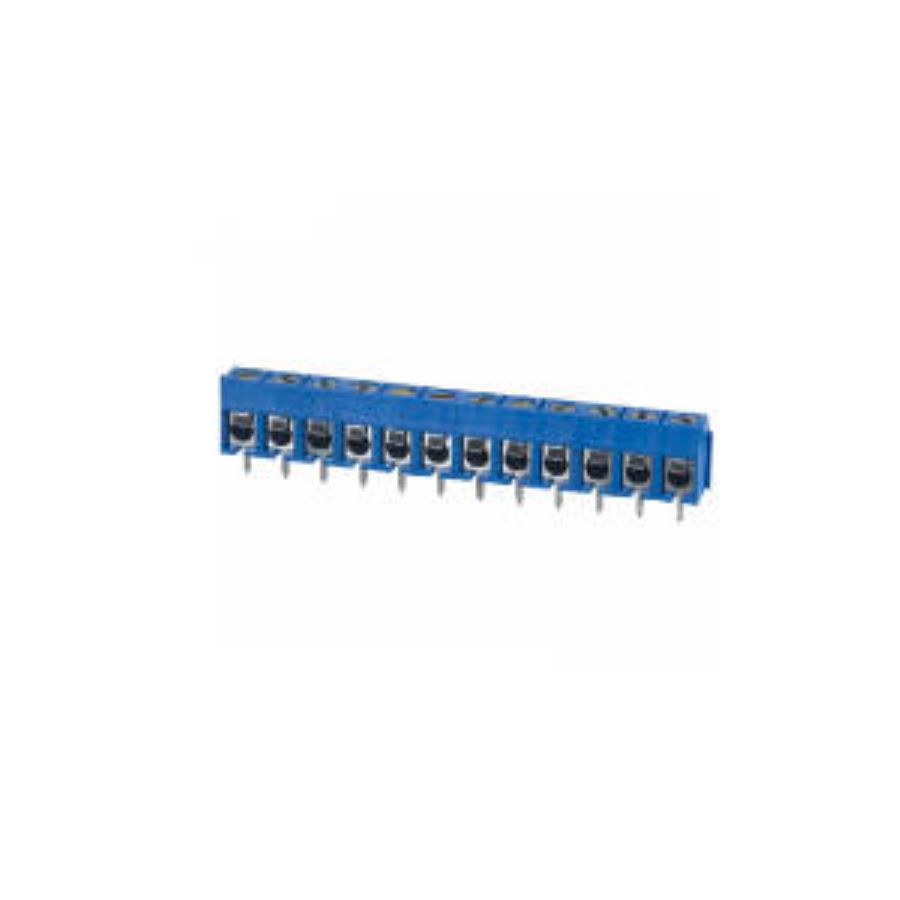

OSTTC122162
Manufacturer:
On Shore Technology
Mfr.Part #:
OSTTC122162
Datasheet:
Description:
Terminal Blocks Through Hole 12 5.08 mm 15 A 300 V 22 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Length | 61 mm |
| Width | 7.6 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 12 |
| Height | 10 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5.08 mm |
| Current | 15 A |
| Current Rating | 15 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal with Board |
| Color | Blue |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Positions Per Level | 12 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 14 AWG |
| Housing Color | Blue |
| Plating | Steel |
| Connection Method | Screw |
| Wire Gauge Range | 22 AWG to 14 AWG |
Stock: 20
Distributors
pcbx
pcbxUnit Price$1.78930
Ext.Price$1.78930
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.78930 | $1.78930 |
| 10 | $1.27831 | $12.78310 |
| 25 | $1.11550 | $27.88750 |
| 50 | $1.01249 | $50.62450 |
| 100 | $0.92634 | $92.63400 |
| 300 | $0.85167 | $255.50100 |
| 500 | $0.78301 | $391.50500 |
| 1000 | $0.74102 | $741.02000 |
| 3000 | $0.70746 | $2122.38000 |
| 5000 | $0.67543 | $3377.15000 |
